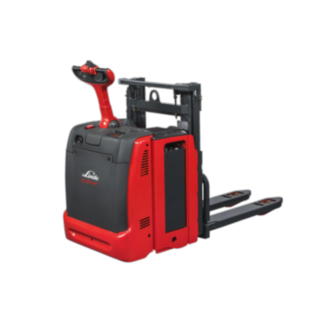

Double Stacker D12 - D14 from Linde Matrial Handling

Pallet Stackers D12 – D14, D12 HP

Sensitive handling

Agility combined with high drive capacity

The electric double stackers D12 - D14 are very flexible when it comes to storing and removing goods, for longer transport distances with two pallets or for quick order picking processes. A high working speed is also guaranteed through the Linde OptiLift controls. It enables precise lifting and lowering of the load. At the same time, the operator maneuvers the truck with no effort using the electric steering unit and adjustable steering resistance. The truck is also very agile with its compact chassis. Thanks to the high performance 3 kW three-phase motor, the double stacker can reach a maximum speed of six kilometers per hour. Its lifting capacity is 1200 to 1400 kg.

Characteristics

Safety

The truck automatically reduces its speed when cornering. This protects the operator and the load from tipping. If the operator releases the driving switch, the double-decker forklift brakes automatically. A load-dependent electro hydraulic brake is immediately triggered when the operator hits the emergency stop button. A good view of the load also contributes to increased safety. The chassis is rounded, reducing the risk of injury. The design of the tiller head also reduces the risk of crushing. Items of clothing cannot become caught.

  • Speed reduction when driving through curves
  • automatic braking when the drive switch is released
  • load-dependent brake when hitting the emergency stop
  • optimal visibility through the mast
  • rounded chassis shape
  • safe tiller head design

Ergonomics

The ergonomic operation of the tiller and the spaciously designed compartments for clipboards, data terminals or laser scanners provide for a user-friendly workplace. The double stacker is also easy to drive with the electrical steering unit and adjustable steering resistance. The strain on the operator is reduced, even during maximum duty.

  • Ergonomic operation
  • spaciously designed storage compartments
  • electrical steering unit for effortless handling

Handling

Using the electrical power steering including adjustable steering resistance, operators can easily control the truck and maneuver effortlessly. The Linde OptiLift control on the tiller provides for precise load handling. The operator controls all driving and lifting functions intuitively. The high performance 3 kW three-phase motor achieves a maximum speed of 6 km per hour even with a full load. The speed adjusts to the steering movements.

  • Safe and precise load handling with Linde OptiLift
  • Power steering with adjustable steering resistance
  • Intuitive operation of all driving and lifting functions
  • Powerful 3 kW three-phase motor

Service

A multi-function display provides information to the operator about the status of the truck. The service technicians then profit during servicing: After connecting the notebook to the CAN bus connection, they will immediately see all of the relevant data and can assess it rapidly. Service components are also easily accessible. Moreover, the three-phase motors don't require servicing. This also increases the availability of the pallet stackers.

  • Multi-functional display for all relevant truck information
  • CAN bus connection for rapid truck diagnosis
  • Easy access to the relevant device components
  • Maintenance-free motor

Technical Data

Model Load capacity/Load Lift Battery voltage/rated capacity (5h) Travel speed, with/without load
D14 1.4 / 2.0 (t) 1924 (mm) 24 / 345/375 (V)/(Ah) 6 / 6 (km/h)
D12 1.2 / 2.0 (t) 1924 (mm) 24 / 345/375 (V)/(Ah) 6 / 6 (km/h)
D12 HP 1.2 / 2.0 (t) 1574 (mm) 24 / 345/375 (V)/(Ah) 6 / 6 (km/h)

Optional Equipment

Compartments for data terminal or bar code reader

The wide, deep compartments are perfect for data terminal, the bar code reader or even film rolls, work gloves and writing implements.

Cold store design to -35°C

The cold store version guarantees full availability and performance of the truck up to minus 35° Celsius.

Load backrest

The load backrest ensures that loads cannot slide backward when the load carrier is raised.

Mobile or fixed battery holder for lateral battery replacement

The rolling battery function in combination with the removable rack is ideal for applications requiring frequent battery changes.

Lateral battery replacement

The lateral battery replacement with roller bearings enables quick changes for use in multiple shifts.

Soft Landing function for the fork carriage

The forks are braked before landing with the “Soft Landing” function so that the loaded goods sink softly to the floor.
