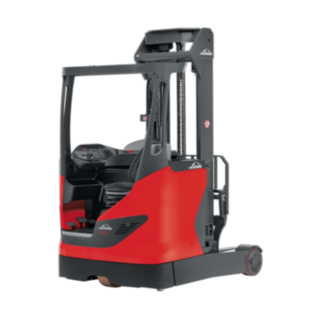

The Linde Reach Trucks R10 - R25

Reach Trucks R10 - R25

Flexible Top Performer

Efficient handling of all logistics tasks thanks to a wide product range

The Linde R10 - R25-product line boasts a wide range of trucks for intensive applications in areas such as contract logistics, the food industry and food trade. The large number of model versions as well as the extensive standard and special equipment make it possible to perform a wide range of different logistics tasks. This includes mast heights up to 13.4 meters, narrow chassis for one-way shelving or the cold store protection able to operate at temperatures as low as - 30°C. In particular, the torsion-resistant lift masts as well as the optional electric linear drive with Dynamic Mast Control, which dynamically compensates for mast oscillation, makes these reach trucks ideal for safe and efficient operation at height. The trucks are also ideal for the double-depth storage of two pallets one behind the other. Ergonomic and individually adjustable control elements as well as a vibration-free driver's seat enable fatigue-free operation.

Characteristics

Safety

The torsion-resistant, visibility-optimized lift masts on R10 - R25 reach trucks help increase safety and efficiency when handling loads at height. An parking brake that engages automatically when the driver exits the truck enables secure stopping on ramps and gradients. Linde Curve Assist ensures safe speeds around bends. Four braking systems reliably stop the truck, even in unforeseen situations. A wide range of additional equipment provides additional safety: For example, an armored glass panoramic roof provides the best possible view of the load. The optional Dynamic Mast Control assistance system compensates for mast oscillation with quick and precise counter-movements and also counteracts mast bend during storage and removal. This reduces the risk of accidents and accelerates work processes.

  • Torsion-resistant mast designed for optimal visibility
  • Automatic parking brake
  • Linde Curve Assist
  • Four braking systems
  • Optional Dynamic Mast Control

Ergonomics

A design concept based on the varying ergonomic requirements of the drivers means that Linde trucks let you work without tiring. All components, such as the driver's seat with air suspension and the control elements, can be individually adjusted. The air suspension automatically adjusts to the driver's weight. The vibration-free driver's cab reduces vibrations on uneven surfaces. The intuitive control elements and a low entry point enable effective and comfortable operation.

  • Ergonomic overall concept
  • Driver's seat with air suspension
  • Individually adjustable seat and console
  • Low access height
  • Vibration-free workstation
  • Intuitive and fatigue-free operation

Handling

The powerful drive and lifting motors, together with the intelligent Linde control technology, enable particularly high handling performance when working with R10 - R25 reach trucks. Thanks to the efficient dual-pedal control with short pedal paths, and high maneuverability due to the short wheelbase, these models can operate extremely quickly and safely – even in confined storage conditions and at height. The large range of models, extensive special equipment options and high residual load capacity mean that the trucks are ideal for various demanding logistics tasks.

  • Powerful motors
  • Dual-pedal control
  • Outstanding maneuverability
  • Extensive model range and special equipment
  • High residual load capacity

Service

Linde trucks are designed for quick and straight-forward service. This is also ensured by easily accessible components. The service technician simply raises the driver's seat using the pneumatic spring to immediately gain access to the truck's electronic and hydraulic components. The motors are maintenance-free. In addition, truck servicing is only required every 1,000 operating hours. These features make R10 - R25 trucks extremely reliable and cost-effective to operate, with outstanding availability.

  • Easily accessible components
  • Maintenance-free electric motors
  • Service every 1,000 operating hours
  • High cost-effectiveness and availability

Technical Data

Model Load capacity/Load Lift Battery voltage/rated capacity (5h) Travel speed, with/without load
R10N 1.0 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R20HD 2.0 (t) 11455 (mm) 48 / 840/930 (V)/(Ah) 14 / 14 (km/h)
R14HD 1.4 (t) 7555 (mm) 48 / 560/620 (V)/(Ah) 14 / 14 (km/h)
R20W-1470 2.0 (t) 8955 (mm) 48 / 700/775 (V)/(Ah) 14 / 14 (km/h)
R14N 1.4 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R16 1.6 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R20 2.0 (t) 8955 (mm) 48 / 700/775 (V)/(Ah) 14 / 14 (km/h)
R14 1.4 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R16N 1.6 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R25 2.5 (t) 11455 (mm) 48 / 840/930 (V)/(Ah) 14 / 14 (km/h)
R12N 1.2 (t) 5760 (mm) 48 / 420/465 (V)/(Ah) 14 / 14 (km/h)
R20W-1670 2.0 (t) 8955 (mm) 48 / 700/775 (V)/(Ah) 14 / 14 (km/h)
R16HD 1.6 (t) 8255 (mm) 48 / 560/620 (V)/(Ah) 14 / 14 (km/h)
R20N 2.0 (t) 8955 (mm) 48 / 700/775 (V)/(Ah) 14 / 14 (km/h)

Optional Equipment

Polyurethane skids

Polyurethane skids that are gentle on the ground prevent scratches on the hall floor.

Fleet management

The Linde connect: fleet management solution allows truck and user data to be recorded, prepared and analyzed. It ensures that industrial trucks are used efficiently, safely and transparently.

Dynamic Mast Control

When storing and removing items at height, this dynamic driver assistance system reduces mast oscillation through direct counter-movements with an extremely fast action electric linear drive. Waiting times are eliminated and damage to the rack, load and truck are reduced.

You can find out more about DMC here.

Phone holder

A phone holder helps with operations and increases safety. The employee always has the display in view and within reach.

Wooden handle for joysticks

Wooden handles for Linde joysticks enhance the work station. The non-splintering hardwood provides a pleasant feel, is less susceptible to contamination and is suitable for drivers with a plastic allergy.

Lift height pre-selection

Lift height pre-selection accelerates the operating process, improves work safety and relieves the burden on the driver.

Comfortable seat

A comfortable seat with air suspension, leather reinforcement and seat heating. The suspension automatically adjusts to the driver's weight and ensures tailored driving comfort and low fatigue.

Cold store variant

In cold store variant, oils, lubricants and the cabin equipment are designed for temperatures as low as -30° Celsius. This means that the trucks remain fully operational at all times.

Load weight display

A load weight display helps the driver handle loads safely and efficiently.

Mast camera

A camera system with split screen helps the driver handle loads safely. The camera displays both forks, the underside of the load and the work area in the rack. In split screen mode, the system also transmits the image of the additional roof camera.

12 V socket

The 12 V socket allows smartphones or other electronic equipment to be connected and charged in the truck.
