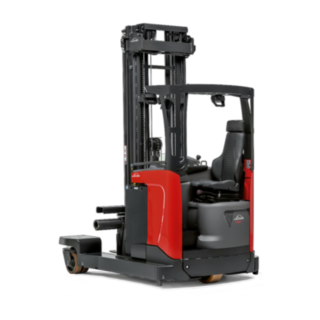

The Linde Reach Truck R20 – R25 F

Reach Trucks R20 - R25 F

Nimble long goods transporters

Four-way reach trucks for narrow aisles

R20 – R25 F four-way reach trucks are specifically designed for transporting particularly long items in narrow aisles. They are not only able to move forwards and backwards, but can also move sideways in both directions. Their adjustable prongs, which can be set to a width of up to two meters, also allow extra-long loads to be transported and stacked. With lift heights of up to nine and a half meters, they are also suitable for use in high rack warehouses. R20 – R25 F-series trucks can even easily handle high loads of up to 2,500 kg. This makes them ideal for long and heavy loads, such as steel girders and wooden beams for the building and timber industry as well as for use on production equipment and in the logistics sector.

Characteristics

Safety

R20 – R25 F four-way trucks have a parking brake that engages automatically when the driver exits the truck, which enables a secure stop on ramps and gradients. The combination of the electromagnetic brake on the drive wheel and the hydraulic brake on the right tandem load wheel ensures precise braking in all driving situations. A protective pane made of high-strength, transparent polycarbonate, reliably protects the driver from falling loads while also providing a panoramic view. End position damping gently reduces the end speed during mast forward reach and lifting movements as soon as the maximum lifting height or maximum forward reach is attained. An additional function also means that the truck automatically switches to creep speed from a certain lifting height, so that loads can be safely positioned and picked up. Linde Curve Assist ensures proportional speed adjustment when traveling around bends.

  • Automatic parking brake
  • Brake on the drive and tandem load wheel
  • Protective pane between the driver and mast
  • End position damping for lifting and forward reach movements
  • Lifting height-dependent creep speed
  • Linde Curve Assist

Ergonomics

Linde R20 – R25 F trucks are designed with a specific focus on the driver's ergonomic requirements to ensure that drivers can operate without tiring. Individual adjustment options for the driver's seat, the operating console and the base plate height allow drivers to further increase their level of comfort. Intuitive and ergonomically arranged control elements ensure effective operation, while a low cabin entry point with handhold facilitates entry and exit.

  • Adjustable driver's seat
  • Individually adjustable control elements
  • Height-adjustable base plate
  • Low entry with handhold

Handling

In terms of versatility, the R20 – R25 F four-way reach trucks combine the features of straddle trucks, counterbalanced forklift trucks, reach trucks and side loaders. The intuitive 360° control provides optimum maneuverability. The optional manually or hydraulically adjustable fork distance enables considerable flexibility when handling wide and long loads as well as with standard pallets. High lift and travel speeds combined with safety features such as end position damping and a display showing load and lifting height mean faster precision handling in the tightest of spaces. The truck structure has a low center of gravity ensuring high residual load capacities. Energy-saving three-phase AC technology enables maximum handling performance. The battery range, graded according to the necessary output, allows the most efficient solution to be selected. This means that the truck can be precisely aligned to specific operating requirements on-site.

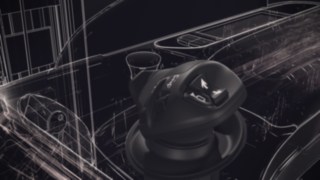

  • Intuitive 360° control
  • Adjustable prong distance
  • High lifting and driving speeds
  • Load and lifting height display
  • Specifically for bulky loads
  • High residual load capacities
  • High handling performance
  • Graduated battery range

Service

Trucks are equipped with easily accessible components ensuring extremely fast and efficient servicing. The modern CAN bus connection allows a service technician to export all the necessary truck data to a central location. The lift and three-phase AC drive motors are maintenance free. Service appointments are required every 1,000 operating hours. This means that R20 – R25 F four-way trucks are extremely cost-effective and high truck availability is ensured.

  • Easily accessible components
  • Computer-based truck diagnostics
  • Modern CAN bus connection
  • Individually adjustable performance parameters
  • Maintenance-free electric motors
  • Service every 1,000 operating hours

Technical Data

Model Load capacity/Load Lift Battery voltage/rated capacity (5h) Aisle width predetermined load dimensions Travel speed, with/without load
R25F 2.5 (t) 7500 (mm) 48 / 620 (V)/(Ah) 13 / 13 (km/h)
R20F 2.0 (t) 6250 (mm) 48 / 465 (V)/(Ah) 13 / 13 (km/h)

Optional Equipment

Lift height pre-selection

Lift height pre-selection accelerates the operating process, improves work safety and relieves the burden on the driver.

Weatherproof cabin

The spacious, heated weatherproof cabin ensures optimum comfort, while large windows provide the best possible all-round view.

Comfortable seat

A comfortable PVC seat with extended backrest and inflatable head and lumbar supports increases driving comfort and prevents premature tiring.

Panoramic view

The special mast concept and driver's roof designed for optimal visibility ensure an outstanding all-round view. This improves safety and accelerates load handling.

Side camera

A camera with color monitor facilitates sideways driving for the driver and increases safety.

12 V socket

The 12 V socket allows smartphones or other electronic equipment to be connected and charged in the truck.
