Fast Goods Transport in Confined Spaces

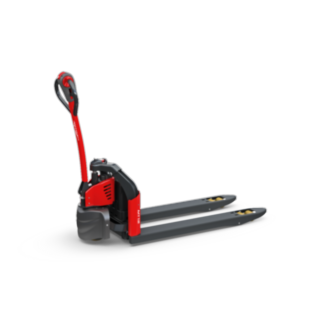

The MT12 pallet truck has a particularly compact design and is therefore very easy to handle – even when space is at a premium. This ensures fast handling processes in the retail trade, in narrow aisles or in production areas. The vehicle is equipped with a lithium-ion battery that can be easily replaced via plug-and-play. Charging takes place via an external charger at any socket. An effective parking brake holds the truck firmly in position when it is, for example, on an inclined truck loading ramp. The MT12 pallet truck has a robust chassis and reinforced forks and can therefore easily transport loads of up to 1,200 kilograms.

Characteristics

Safety

In principle, the driver is at a safe distance during handling – this is ensured by the long and low mounted tiller arm. A low chassis protects the feet. If the driver takes their hands off the butterfly switch, the electromagnetic brake stops the vehicle automatically. In addition, there is a belly switch on the tiller head that can be used to stop the MT12 in an emergency. The efficient parking brake holds the low-platform truck securely on the slope or on an inclined truck loading ramp.

  • Efficient parking brake
  • Long tiller arm
  • Low chassis
  • Electromagnetic brake
  • Emergency belly switch

Ergonomics

All operating elements are located in the ergonomically shaped tiller head and are easy to reach – including the dual butterfly lever for convenient control of the truck with both hands. The battery, which weighs only 3.7 kilos, can be replaced effortlessly via plug-and-play.

  • Ergonomically shaped tiller handle
  • Dual butterfly control
  • Lightweight battery
  • Multi-functional display

Handling

With its powerful 0.65 kW drive motor, the MT12 pallet truck achieves a top speed of 4.5 kilometers per hour. This ensures fast handling processes when transporting loads of up to 1200 kilograms total weight. Thanks to its compact design, the vehicle is easy to maneuver even in confined spaces. The lithium-ion battery guarantees non-stop operation for 3 hours. It takes only 2.5 hours to charge.

  • Powerful drive motor
  • Compact design
  • Lithium-ion battery
  • Three hours of autonomous work

Service

The robust DC motor enables long operating times before maintenance is due. This reduces service costs. Maintenance is fast, because the service technician reads off all data via CAN bus. An automatic lift stop at maximum lift height extends the service life of the components, protects the pump unit and reduces noise. In addition, the battery is very robust: Even shorter charging cycles do not affect its service life. The battery management system interrupts the charging process if short circuits or current overloads occur.

  • Long maintenance intervals
  • CAN bus structure
  • Battery management system

Technical Data

Model Load capacity/Load Lift
MT12 1.2 (t) 110 (mm)

Optional Equipment

Alternative Forks

Forks of different lengths and widths are available for the pallet truck. This allows the vehicle to be configured precisely for the specific handling task.

Load Protection Grid

The robust grid with a height of 1,220 or 1,520 millimeters stabilizes the load and prevents it from slipping.

Extra L-ION 24 V / 26 Ah Battery

The larger 26 Ah lithium-ion battery allows longer use without recharging.


UK Plug

Linde offers the external charger with a three-pole plug according to British standards.
