Tugger Trains LT10 WX

Every aspect of the LT10 WX tugger trains trailers has been designed to ensure that they are ergonomic to use and minimize the physical strain for the operator. The trolleys lock automatically as soon as they are inserted (with no need for any manual intervention) and the unlocking mechanism is conveniently mounted at an ergonomic height where it can be operated by foot. As soon as the driver steps onto the platform of the towing vehicle, the trailers are raised automatically, completely eliminating the need for manual lifting. The trough-shaped design of the trailers ensures that the trolleys slide into the correct position without any effort as soon as they have passed the apex. The side guide profiles help to ensure trolleys can be inserted into the trailer mount quickly and precisely, reducing the physical strain on the operator. The short overall length of the tugger train means that the driver has to cover less distance when walking between the towing vehicle and the trailers.

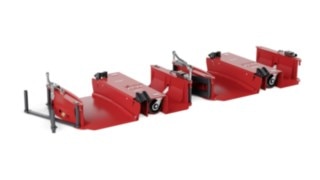

The LT10 WX offers exceptional efficiency and maneuverability. While conventional tugger trains are limited to four to six trailers, the LT10 WX can transport up to eight at a time. Its special scissor tiller reduces the distance between the trailers, resulting in a 20 percent higher transport capacity with the same train length. The low turning space requirement of just 4.5 meters with six trailers and 4.7 meters with eight trailers means that the tugger train can negotiate very tight bends even when fully loaded, making it easy to maneuver even in the smallest of spaces. The scissor tiller and the way the wheels are set back help to ensure precise tracking behavior and excellent directional stability. The low service weight of the load frame also allows the tractor to travel faster, significantly increasing the handling capacity. The frames can be loaded and unloaded from both sides for maximum process flexibility while the trailers’ automatic lifting and lowering function significantly speeds up the entire handling process. The frames can be used with full-size (1,200 x 800 mm or 1,200 x 1,000 mm) and half-size standard trolleys (800 x 600 mm or 1,000 x 600 mm).

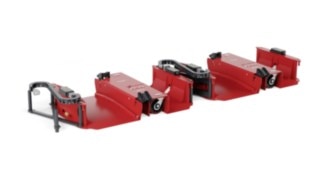

Their simple, predominantly mechanical design with minimal electronics enables the robust LT10 WX to impress with high reliability and long operating times. The trailers come with an emergency lever as standard, which enables the frames to be lifted manually even without power. The service-friendly locking mechanism makes maintenance quick and easy. In the optional version with the electric lifting mechanism, the durable lift motors and a maintenance-free power chain further help to reduce the amount of servicing required. A QR code on the type plate gives service technicians direct access to trailer-specific spare parts lists and operating instructions to speed up and simplify maintenance and repair work considerably.
