Robust safety when maneuvering and transporting

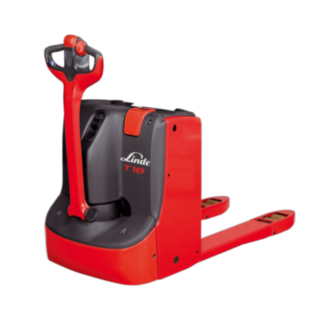

The T16, T18, and T20 pallet trucks have a particularly rugged construction. For example, tiller and motor cover are made of fiberglass-reinforced materials and can work reliably and continuous for a long time, maneuvering, order picking, and transporting. The low chassis provides more safety. It covers all of the wheels so the user's feet do not come into contact with them. The tiller is mounted at a very low point on the truck. The operator is therefore at a safe distance from the pallet truck with the tiller folded down.
The effective electric braking system is also important for the safety of the T16, T18, and T20. The trucks accelerate quickly with the powerful three-phase motor and the booster effect provides even more output in difficult situations. Depending on the version, they boast a lifting capacity of 1,600 to 2,000 kilograms.
The design of the pallet truck improves the safety of the operator and protects their feet, because the wheels are completely covered by the chassis. In addition, the low tiller mounting point guarantees that the operator is at a safe distance from the truck during motion.
SafetySpeed automatically adjusts the speed depending on the tiller position; the more vertical, the slower it goes. This means the truck cannot bump against the operator. If the operator moves the tiller to the top or bottom end position, effective electromagnetic brakes ensure it stops quickly. The same applies if the operator releases the drive switch. The design of the tiller handle protects the operator's hands from impacts.
- Deep-drawn chassis for foot guard
- Effective braking system
- Controlled speed with the tiller
- Tiller with hand protection
- Low tiller mounting point
All the control elements on the tiller can be easily accessed by the user with both hands. In addition, the tiller has a long lever, which makes it easier to control the truck in tight corners. The operator can keep packing paper, writing implements, and other work materials at hand in the deep storage compartments.
- Tiller can be operated from left or right
- Long lifting lever
- Deep storage compartments
The powerful, digitally controlled three-phase motor ensures rapid acceleration. In addition, the technician can adjust the performance parameters of the truck for the special conditions of the site, thus increasing handling capacity.
Using the booster effect, the motor automatically increases torque and, as a result, performance. Difficult situations such as climbing gradients or driving over potholes are easy to master.
With the creep speed button, the truck can be maneuvered slowly even with the tiller in the vertical position. This makes many work processes easier if there is little space available. Large drive wheels absorb impacts and make the truck more stable on uneven surfaces.
- Powerful three-phase motor
- Booster effect for higher torque
- Creep speed button
- Large drive wheels for more stability
The three-phase technology of the motor requires no servicing and thus there are no service costs. The service technician can easily reach the components.
In addition, the truck has a CAN bus structure: The service technician gets a readout of the truck data using a laptop and can then perform a quick truck diagnosis. The tiller and motor cover are made of particularly tough, fiberglass-reinforced materials. This prevents damage and reduces service costs.
- Maintenance-free three-phase motor
- CAN bus structure
- Easily accessible service components
- Fiberglass-reinforced tiller and motor cover
|Model||Load capacity/Load||Lift||Travel speed, with/without load||Turning radius||Battery voltage/rated capacity (5h)|
|T16||1.6 (t)||125 (mm)||6 / 6 km/h||1440 / 1510 (mm)||24 / 150 (V)/(Ah) o. kWh|
|T16 ION||1.6 (t)||125 (mm)||6 / 6 km/h||1440 / 1510 (mm)||24 / 82 (V)/(Ah) o. kWh|
|T18||1.8 (t)||125 (mm)||6 / 6 km/h||1515 / 1585 (mm)||24 / 250 (V)/(Ah) o. kWh|
|T18 ION||1.8 (t)||125 (mm)||6 / 6 km/h||1440 / 1510 (mm)||24 / 164 (V)/(Ah) o. kWh|
|T20||2.0 (t)||125 (mm)||6 / 6 km/h||1590 / 1660 (mm)||24 / 375 (V)/(Ah) o. kWh|
|T20 ION||2.0 (t)||125 (mm)||6 / 6 km/h||1515 / 1585 (mm)||24 / 410 (V)/(Ah) o. kWh|
Emergency stop button
Vertical battery replacement
The optional buzzer sounds different from the standard horn and can be heard better in loud environments.
The drive wheels have additional suspension to absorb impacts and bumps.
The integrated charger increases flexibility: The pallet truck can be charged nearly everywhere and at any time.
The backrest stabilizes the load and prevents the pallets from sliding.
Emergency stop button
If the operator hits the button, the truck stops immediately, protecting them and others from hazards or damage.
Vertical battery replacement
The battery can be easily and effortlessly removed from the side of the truck using rollers.
Access control of the connect: fleet management software from Linde informs the operator who is at the wheel of which truck. The driver must identify themselves using a PIN or a RFID card before they can start the truck.
