0 - 1000 (kg)
0 - 6865 (mm)
0 - 7833 (mm)

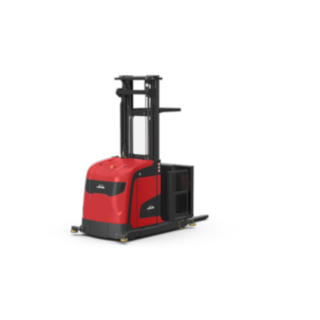

The V modular B vertical order picker from Linde Material Handling

Order Pickers V modular B

Powerful entry-level model

Aiming high with ease

The V modular B vertical order picker from Linde Material Handling is a powerful truck for medium order picking heights of up to 7.8 meters and payloads of up to 1,000 kilograms. The series combines the best of the Linde order picker product family, uniting performance and cost efficiency. The spacious operator's cab offers the driver a comfortable workplace. In addition to the lower entry height compared to competitor trucks, the cab is decoupled from the chassis. Vibrations and impacts are only transmitted to the operator in a damped manner. As a result, the V modular B enables ergonomic and safe working and protects the operator from injury. The vertical order picker achieves a maximum lift speed of 0.4 m/s and a travel speed of up to 11 km/h, which additionally contributes to higher picking performance. Thanks to the modular truck concept, customers can adapt the order picker precisely to their individual requirements and, for example, choose between a 24 V and 48 V motor depending on their power needs.

Characteristics

Safety

The mast design of the vertical order picker allows optimum visibility for the driver and thus contributes to safe working. The required lateral barriers from a platform height of 1.2 meters are electronically monitored and protect the operator from falling. For emergencies, there is also an emergency lowering valve that is easily accessible under the rear cover, even in narrow aisles. In addition, the service technician can adapt further configurations to the conditions on site. This prevents collisions with ceilings and walls. To prevent operating errors and injuries, the driver must touch the sensors on the control unit with both hands and activate the dead man's switch in the footwell. Only then can the truck be moved. In the narrow aisle, the personal protection system with two scanners in the load and drive directions protects the operator and actively intervenes in the driving behavior.

Very good visibility through the mast
Electrically monitored side barriers
Three-point control
Emergency lowering valve under the rear cover
Travel, lift, and lowering stops can be preset

Ergonomics

Order picking is one of the most physically demanding tasks in the warehouse. The V modular B vertical order picker supports the operator with numerous features: In the spacious cabin, the operator can work in a relaxed manner. Depending on the requirements, many storage areas and equipment variants are available. A low parapet makes it easier to pick up and place goods. The patented ergo pad allows the operator to lean back, relieving tension on their muscles. Optional side barriers are available that tilt slightly outward, allowing the operator to reach deeper into the rack. During travel, the platform and a soft mat cushion vibrations, preventing operator fatigue. When picking, the operator stands securely on the solid surface at the edge of the cabin floor.

Ergonomic control panel
Many storage spaces and equipment variants
Spacious cabin with rounded edges
Low railing
Suspension cab with anti-vibration mat

Handling

Thanks to the electric steering, the truck can be maneuvered easily, quickly, and precisely. The high lifting and travel speeds additionally contribute to high handling rates. At the same time, the three-phase AC motors of the Linde vertical order pickers are characterized by low energy consumption and a high residual load capacity at lifting heights of up to 7.8 meters.

Precise steering for fast maneuvering
High residual load capacity
Energy efficiency
High lifting and travel speeds

Service

The Linde vertical order picker is designed to be service-friendly all around: The central components are easily accessible behind a panel. The travel and lift motors are encapsulated and thus protected from dust and dirt. This means less downtime for repairs and maintenance. Service technicians can read out and check all central data via the CAN bus interface.

Easily accessible service components
Maintenance-free drive and lift motors
Truck data can be read out via CAN bus connection

Technical Data

Model	Load capacity/Load	Lift	Travel speed, with/without load	Turning radius	Aisle width with pallet 800 x 1200 along forks
V modular B 24V Standard mast	1.0 (t)	4550 (mm)	9 / 9 km/h	1585 (mm)	- (mm)
V modular B 48V Standard mast	1.0 (t)	5000 (mm)	10 / 10 km/h	1958 (mm)	1820 (mm)
V modular B 48V Standard mast	1.0 (t)	6000 (mm)	10 / 10 km/h	1958 (mm)	1820 (mm)

Download Datasheet

Personal Protection System (PPS)

In accordance with DIN 15185, laser scanners detect people in a safety zone of nine metres in front of and behind the vehicle. If a person is detected, a warning signal sounds, and the vehicle stops automatically. Two additional, adjustable warning fields allow the speed to be reduced even before the safety zone and can also be used for changing the aisles safely.

Control panel

The control panel can optionally be mounted at the load end or at the load and mast end – the operating logic is maintained.

Mounting systems

Items such as terminals, scanners, clipboards, writing supports, or individual fixtures can be fitted. The attachment bars are mounted on the left and right-hand side of the mast as well as at the load end on the overhead guard.

Walk-on pallet

The load area is secured with a protective cage. It is therefore safe for the user to access the area and pick orders from here.

BlueSpot™

The Linde BlueSpot™ increases safety during operation, as the LED spotlight makes trucks silently visible.

Linde Connect

How and by whom are the individual forklifts used? What does the usage data of the forklifts look like, and is each one roadworthy? Using a combination of software and hardware, connect: provides the appropriate answers.

Linde System Control (LSC)

The system ensures rapid turnaround and enhanced safety. In the basic LSC Standard version, the remaining load capacity for the respective lift height is displayed to the operator. Extended LSC versions adapt additional lift and/or travel speed to the transported load weight.

Tilting barriers

If the driver leans on the barrier, it folds outward by 10 cm. This gives the operator better access to the racking, making order picking easier and safer.

Radio preparation

The truck will be equipped with a 12-volt / 50-watt connection as well as speakers and an antenna in the cabin.

Mirrors and lighting

Large mirrors in both directions as well as work lights support the operator in daily work. As an option, fans are available to cool the operator under the roof in hot conditions at high lift heights.

Personal protection system

In the narrow aisle, the personal protection system with two scanners in the load and drive direction protects the operator and actively intervenes in the driving behavior.
